Primostar 3 數位

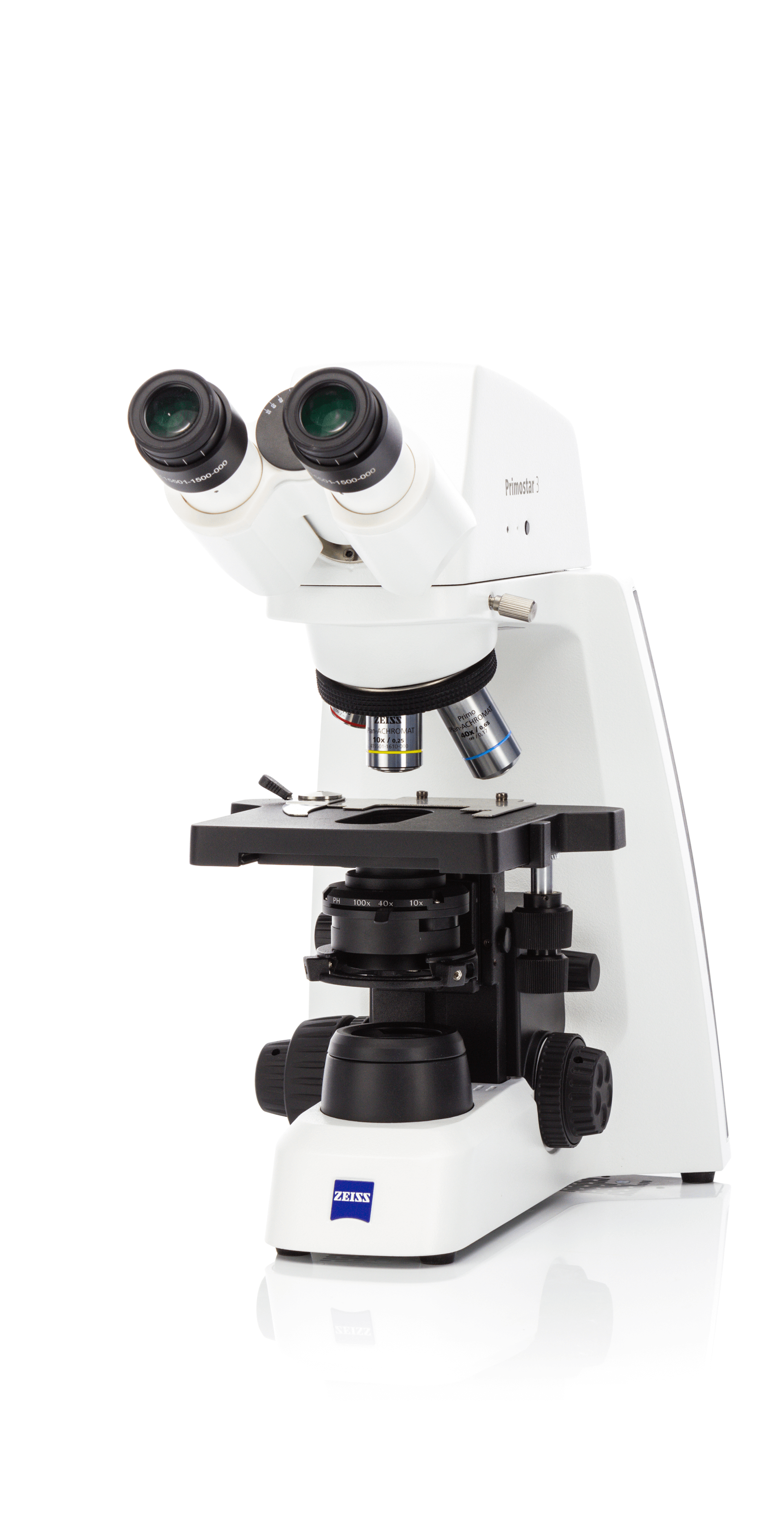

Primostar 3 – 堅固耐用的緊湊型正立顯微鏡

  • 適用於數位教學和實驗室等日常工作
  • 簡單易用、緊湊且經久耐用
  • 可在空間有限的環境下實現長時間工作
  • 將相機連接網路並安裝Labscope顯微成像應用程式即可建立數位互動教室
  • Primostar 3 HDcam內建830萬像素高畫質相機
  • 內建相機提供LAN/乙太網和USB-C 3.0等多種介面

特點

  • 提供多種多樣的套裝組合,您可從中選擇滿足工作需求的配置。套裝中已配備一系列物鏡,無需您再費心挑選。
  • 搭載固定式科勒照明系統的Primostar 3 隨插即用,助您專心工作。您也可利用Primostar 3 全科勒照明系統套裝來培訓和學習如何調節科勒照明。
  • 我們提供透射光明視野、暗視野、簡易偏光、相位差及螢光觀察等各種觀察方式。您可根據應用隨心暢選。
  • 借助Primostar 3 HDcam 更方便地實現數位互動教學。
  • 帶多個介面的內建8.3 MPx HD 可讓您在培訓課程環境中進行靈活設置(相容USB 3.0、HDMI、乙太網、WiFi)。
  • 您可在Windows電腦或iOS 設備上免費使用Labscope應用程式。同時,還可拍攝圖像、影片、與同事分享結果,以及隨時直接作出批註。
  • 您可將顯微鏡接入網路,建構數位互動教室,通過應用程式Labscope查看所有顯微鏡,從而節省教學時間。使用Labscope即可實現這一切。
  • Primostar 3可在鏡架上顯示照明強度,使用者可輕鬆查看照明強度,還能讓老師隨時關注教室內所有顯微鏡的使用情況。

為您的應用量身定制

  • 明視野或螢光觀察可用於檢查染色的組織切片。相位差方式可用於觀察未染色的樣品。暗視野觀察方式可用於觀察極細的結構,如矽藻。
  • 對於植物學家,可用它來檢查植物莖幹的橫截面。
  • 對於解剖學、病理學、血液學及動物學應用,可用它來檢查組織切片和血液塗片,以記錄病症。
  • 對於您所栽培的植物,可用它來檢查植物病原體或害蟲,或跟蹤疾病的發展和病程。
  • 它還可用於觀察細菌細胞的形態,如枯草芽孢桿菌、表皮葡萄球菌、藤黃微球菌和大腸桿菌。

Objective Lenses Infinity corrected iPlan Achromat 4x, 10x, 40x, (optional 100x oil) objectives.

  • iPlan Achromat 4x/0.1, WD = 30.7mm
  • iPlan Achromat 10x/0.25, WD = 17.5mm
  • iPlan Achromat 40x/0.65, WD = 0.66mm
  • OPTIONAL iPlan Achromat 100x/1.25 Oil, WD = 0.27mm
Viewing Head Trinocular head inclined 25º, reversed image. 50/50 Beam Splitter. Viewing height adjustable from 370-410mm.
Eyepieces Widefield 10x / 20 focusing eyepieces, accept 25mm diameter reticle. Interpupillary distance adjustable from 48-75mm.
Total Magnification 40x, 100x, 400x, (optional 1000x).
Specimen Stage 140mm W x 135mm D right hand rackless mechanical stage with X-Y travel of 75mm x 40mm, with single specimen holder. Total travel range of stage = 15mm.
Focusing Coarse and fine focusing. Coarse focus drive is 45mm/rev, fine focus is 0.5mm/rev.
Condenser Abbe condenser 0.9/1.25 NA.

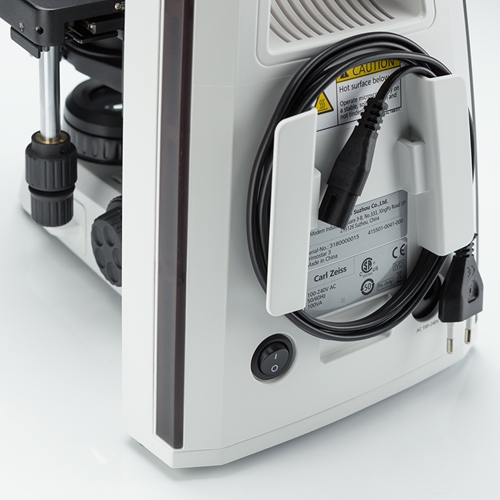

Illumination Includes 3W LED 5600K lamp. Corded 100~240V with cord storage on microscope frame. Light intensity control with LED intensity display on both sides of microscope. Certified: CE, CSA, UL, ICC, ISO 9001, IvD. 5V USB port in back of microscope for connecting a power bank or charging your mobile device.
Stand Features Fixed Köhler stand, 4-position nosepiece tilted backwards, cord storage, and carrying handle integrated into stand. All components of Zeiss Primostar are anti-fungus treated.
Camera HD 1080p camera, live resolution 1920×1080 pixels. 2mp image capture to SD card. Live image 1080p / 60 fps. Camera controls for exposure, gain, white balance, color adjustment, sharpness. Includes mouse for on-screen controls.
Monitor 12″ LCD HDMI monitor with true 1080P. LED backlight. Mounts directly to camera.
Software Calibration If you plan to make measurements using the software you will need to calibrate the microscope. Calibrating your software with the microscope requires use of a stage micrometer. When ordering please select this option if you do not already have a stage micrometer. The stage micrometer is 1mm / 100 divisions. If NIST certification is selected 10 points will be certified. Please note that NIST certification takes approximately 2 weeks.
Size & Weight 15.7″ H x 8.2″ W x 11.7″ D, 23 lb.

※規格僅供參考,詳細資料以實際交機為主,若有更改恕不另行通知。
